When developing a complex model in GroIMP, it happens that you want to “store” nodes in an “easy” to access data structure (list, array, map, …), or as fields of other objects (create a module with its parent as field). Such kind of development practice are strongly discouraged, as they are both inefficient and prone to unexpected errors in the project. This tutorial will cover what type of issues this behavior can create, and propose different approaches to properly get to the same goal.

For this example we consider a very simple project of one rgg class with the content:

Node[] mynode = new Node[1];

module A;

protected void init ()
[
	Axiom ==> A;
]

public void storeNode ()
[
a:A ::> mynode[0] = a;
]

public void queryA() {
	reset();
	derive();
	println( (*A*));
}

When the project is initialized (either after compilation, or through manual reset) the main graph contains three nodes: the root, an rggroot, one A. (visible in the picture bellow.

As you can see, the Node A has an id of 193. Let's store that node into the array mynode by running the method sotreNode.

Then, let's reset the project through the reset command, which will remove the RGGRoot node from the graph, as well as all its children nodes (in this case the nodes with id 191 ,and 193) will be removed. After a reset, the project automatically add a NEW RGGRoot in the graph and run the init() method. The init() method here add an NEW A in the main graph.

Thus, after reset the main graph looks like:

As you can see, the graph is very similar. It contains the same type of nodes: the root, an rggroot, one A. However, the RGGRoot and A have the ids: 194 and 196 respectively. They are different Nodes compared to the previous ones.

Now let's query all Node A in the graph and print them with println( (*A*) );. The output result is:

The main graph only contains ONE Node A (with the id 196) as displayed in the 2nd picture. Yet, the query return two A. The current one, and the one stored in the array mynode.

issue: The queried Nodes and the Nodes contained in the main graph do not match anymore.

Note: The “old” Node A do not need to be added to the main graph first for this issue to appear. If an array is created with an Node in, e.g.

 Node[] mynode = new Node[]{new A()};

The Node A would still appear in the queries despite not being part of the main graph

Another common example is to store existing Nodes in newly created Nodes at fields. For instance, let's consider a project with the following code:

module B(A parentNode);
module A;

protected void init ()
[
	Axiom ==> A;
]

public void growth()[
a:A ==> B(a);
]

public void queryA() {
	growth();
	derive();
	println( (*A*));
}

In this example, the module B has an attribute parentNode of the type A. Thus, B has a field of type A (in which the parameter parentNode will be stored).

Similarly to the previous example, the initial state of the main graph contains 3 nodes:

On applying the method growth(), the Node A is replaced by a newly created B, and the Node B use the old A as parentNode. Thus, the Node A is replaced by a B which has a field that contains the A. The main graph now looks like:

The node A of id 276 has been replaced by a B with id 277. The node A is not present in the main graph anymore.

Yet, let's query the Node A and print them with println( (*A*));:

The Node A of id 276 (the parentNode of the Node B) is still query-able.

issue: The queried Nodes and the Nodes contained in the main graph do not match anymore.

The graph queries include Node in the whole project graph. The main graph is only one of the sub-graphs of the project graph. Nodes can exists in the project graph without being part of the main graph. Additionally, when a Node is removed from the main graph, it is not “deleted”. It is simply disconnected from the graph. The garbage collector is the one that actually “delete” the Nodes that are not connected to ANY graph anymore. If Nodes disconnected from the main graph still have a connection to the project graph, they are not completely “disconnected” from the graph. Thus, they are not deleted.

The graph in GroIMP works basically like a HashMap of id and Nodes. It also includes many other features to access the Nodes, but the base data structure is a HashMap. The Node are added and retrieved using the hash of their id. Thus, instead of storing the Nodes themselves, their id should be stored.

For example, in the project:

long[] mynodeid = new long[1];

module B(long parentNode);
module A;

protected void init ()
[
	Axiom ==> A;
]

public void dostuff()[
a:A ==> B(a.getId())
	{mynodeid[0]=a.getId();}
	;
]

public void queryA() {
	dostuff();
	derive();
	println( (*A*));
}

The method queryA() do not print Node A. Indeed, the Node A do not exists anymore.

In this example, the Node A is replaced by a Node B in the main graph. Thus, should not exists anymore. But in other project, the Node A can remains in the graph. E.g.

long[] mynodeid = new long[1];

module B(long parentNode);
module A;

protected void init ()
[
	Axiom ==> A;
]

public void dostuff()[
a:A ==> a B(a.getId())
	{mynodeid[0]=a.getId();}
	;
]

public void getTheNode(){
	// Get the node from an array
	println(mynodeid[0]);
	println(graph().getNodeForId((mynodeid[0])));

	// Get the parentNode of B
	[b:B ::> println(graph().getNodeForId( b.parentNode)); ]
}

Here, as the Node A still is in the main graph, it is accessible with methods such as in getTheNode().

Using the id instead of the Node to “store” the Node ensure that once the Node is moved out of the main graph, it is properly deleted. It prevents unwanted leftover artifacts in the project graph, that can pollute the XL queries.

Relationship between objects of the graph should be stored in the graph. Thus, in the example of module B(A parent), the knowledge between A and B should be part of the graph. To keep such information it is possible to use custom edges (or edges that are not SUCCESSOR and BRANCH. e.g. REFINEMENT_EDGE, MARK_EDGE, …).

• For example if B do NOT replace A:

module A;
module B;
int e = Library.EDGE_0;

protected void init ()
[
	Axiom ==> A F ;
]

public void grow()[
	a:A ==> a B [-e->a];
]

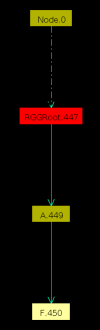

One the left: before the “grow” method, on the right after. On the right picture, we can see that B and A have both the SUCCESSOR edge AND the custom EDGE_O. In this case the additional EDGE_0 might not bring much knowledge, however, in more complex project, A and B might not be directly related. Thus, adding the edge EDGE_0 adds both the knowledge of the parentNode “attribute” and it can be used to speed up future XL queries.

• If B do replace A. And the relationship between B and A must exists even though A is not part of the visible part of the graph.

public void grow()[
    a:A ==> B [-e->a];
]

will produce the graph:

You can see that the Node A is still part of the main graph. It is XL query-able and reachable from B by following the edge EDGE_O. However, as the Node A is not connected to the Root by neither BRANCH, nor SUCCESSOR edge, it will not be displayed (not part of the 3d view, and raytracer).

Note: In the example we used EDGE_O, there are actually 13 usable unique bit-wise edge type defined in Library: EDGE_0 to EDGE_12. But it is also possible to use any Integer as “unique” edge bit. It is still important to know that the edge bit is used for bit wise operations. Thus if the edge bit you use contains the bit SUCCESSOR, the edge will be a successor.
