Use the 2D graph view
In this tutorial we will see how to visualize the project graph.
2D Graph view

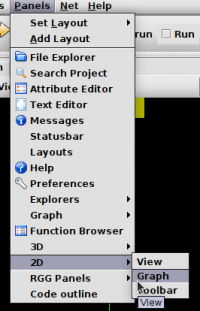

The 2D graph view can be opened by clicking on :
Note: The 2D graph is different from the 2D View. The latter cannot be used with 3d objects, which you usually have in your scene. Thus, it will most likely crash.
Visualizing different graph
A project in GroIMP contains a project graph. The project graph is usually composed of several sub-graphs (the most commons are Main Graph and Meta Graph).
By default the 2D graph display the Main Graph:

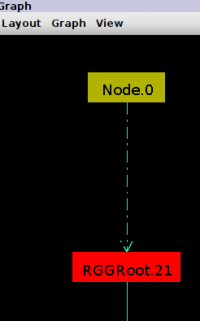

The Main Graph is the graph usually managed by the users. It contains the Node 0, and usually the RGGRoot.
To select which sub-graph to visualize, use the menu “graph>edit”:
It will open the attribute editor:
The currently displayed graph is called project (red circle in the image). It is confusing but this is the Main Graph. To change the selection click on project and select an other one.

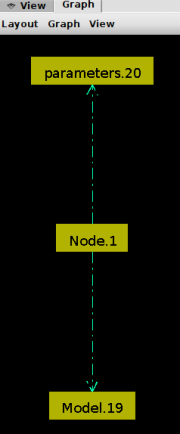

The other main sub-graph is the Meta Graph :
